PEC16DBEN
Sullins Connector Solutions
Sullins Connector Solutions

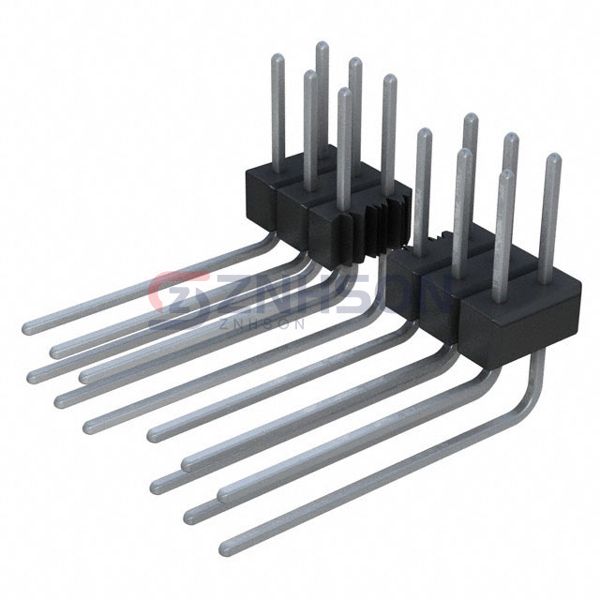

CONN HEADER R/A 32POS 2.54MM
$4.36
Available to order
Reference Price (USD)
1+
$4.36000
10+
$4.18600
25+
$3.83680
50+
$3.66240
100+
$3.48800
250+
$3.05200
500+
$2.96480
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC16DBEN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.500" (12.70mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
MMT-120-02-S-SH
Samtec Inc.
TSM-107-02-L-DV-LC
Mill-Max Manufacturing Corp.
850-90-024-30-001000
Preci-Dip
800-V3-018-6B-002101
Preci-Dip
890-80-016-20-001101
Samtec Inc.
HTSW-108-07-TM-S
Samtec Inc.
SHF-113-01-F-D-SM
NorComp Inc.

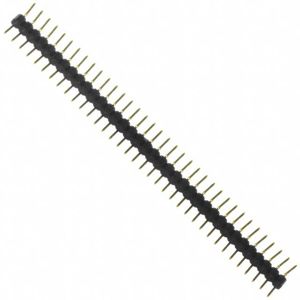

27633602RP2
