PEC17SADN
Sullins Connector Solutions
Sullins Connector Solutions

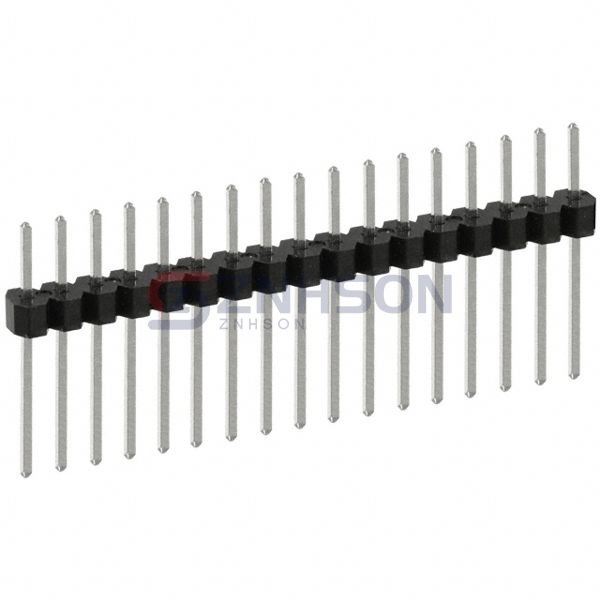

CONN HEADER VERT 17POS 2.54MM
$1.58
Available to order
Reference Price (USD)
1+
$1.58000
10+
$1.43000
25+
$1.34240
50+
$1.28400
100+
$1.22570
250+
$1.10896
500+
$1.02142
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PEC17SADN rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PEC17SADN adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 17
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
