PEC17SFEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 17POS 2.54MM
$2.48
Available to order
Reference Price (USD)
1+
$2.48000
10+
$2.24900
25+
$2.11160
50+
$2.01960
100+
$1.92780
250+
$1.74420
500+
$1.60650
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC17SFEN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PEC17SFEN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 17
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.938" (23.83mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Hirose Electric Co Ltd
HIF6A-60PA-1.27DSA(71)
Samtec Inc.
TSM-103-04-T-DV-TR
Samtec Inc.
BBD-118-G-B
Preci-Dip
800-80-027-66-001101
Preci-Dip
800-10-032-30-480101
Samtec Inc.
TSM-102-02-L-SH-LC
Samtec Inc.
FTS-114-02-F-D
Molex
0533984008
TE Connectivity AMP Connectors

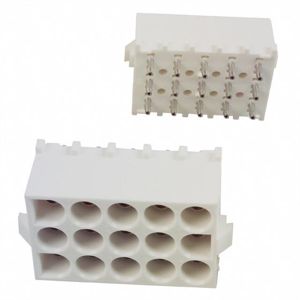

350738-1
