PEC18DBEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 36POS 2.54MM
$4.91
Available to order
Reference Price (USD)
1+
$4.91000
10+
$4.70900
25+
$4.31640
50+
$4.12020
100+
$3.92400
250+
$3.43352
500+
$3.33540
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PEC18DBEN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC18DBEN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 36
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.500" (12.70mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Adam Tech
PH1RB-07-UA
Mill-Max Manufacturing Corp.
850-10-046-20-001000
Samtec Inc.
TSM-103-02-F-SH
Samtec Inc.
FTS-110-02-F-DV-A-P
Sullins Connector Solutions
PBC11SGBN
Samtec Inc.
TSM-102-03-T-SH-TR
Adam Tech
BHR-26-VUA
Samtec Inc.
EHF-105-01-LM-D-RA

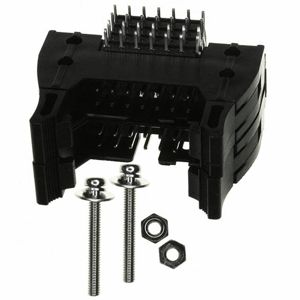

Omron Electronics Inc-EMC Div
