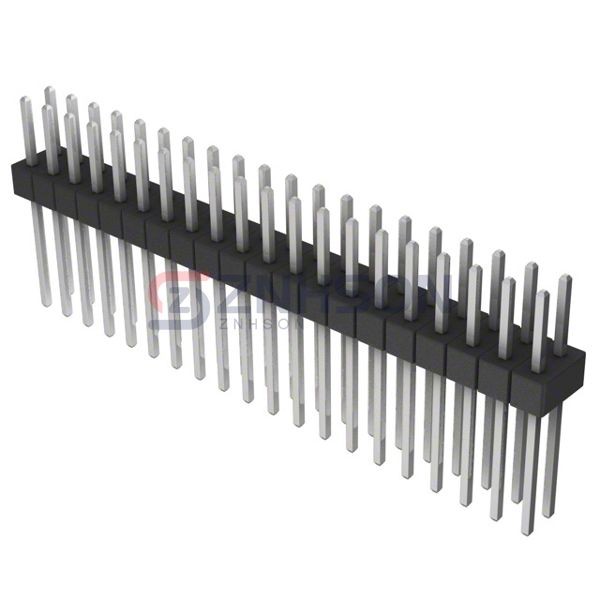

PEC20DADN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 40POS 2.54MM
$3.47
Available to order
Reference Price (USD)
1+
$3.47000
10+
$3.32800
25+
$3.05080
50+
$2.91200
100+
$2.77330
250+
$2.42668
500+
$2.35734
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC20DADN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
8-2232000-3
Molex
0643341001
Preci-Dip
350-80-130-00-012101
Samtec Inc.
TMM-101-03-L-D
TE Connectivity AMP Connectors
2-826664-0
Adam Tech
2BHR-16-VUA-SMT
TE Connectivity AMP Connectors
6-146254-7
Preci-Dip

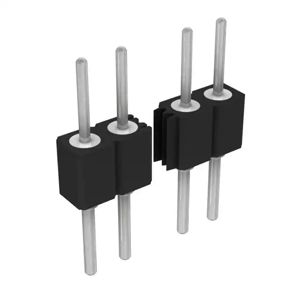

800-80-025-10-001101
Samtec Inc.

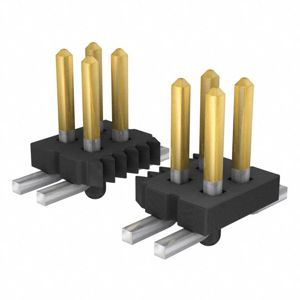

FTS-117-01-L-DV-A
