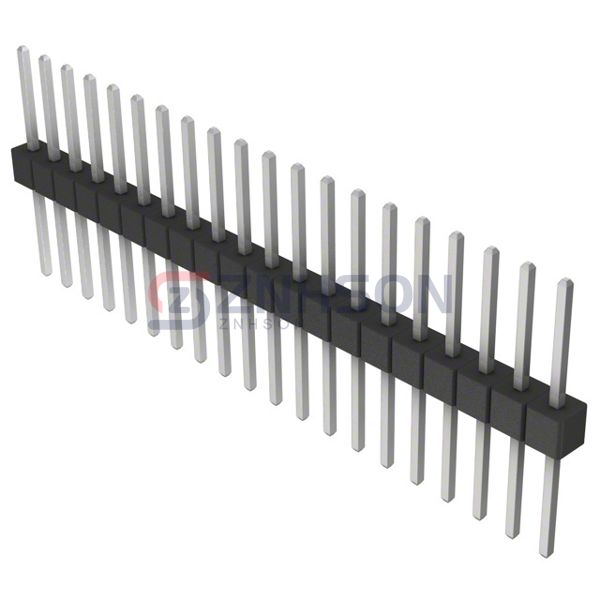

PEC20SFCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 20POS 2.54MM
$2.05
Available to order
Reference Price (USD)
1+
$2.05000
10+
$1.86200
25+
$1.74800
50+
$1.67200
100+
$1.59600
250+
$1.44400
500+
$1.33000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC20SFCN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
852-80-080-10-002101

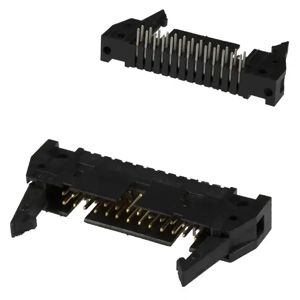

TE Connectivity AMP Connectors
5102322-6

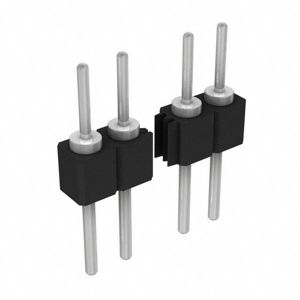

Samtec Inc.
TS-127-T-A

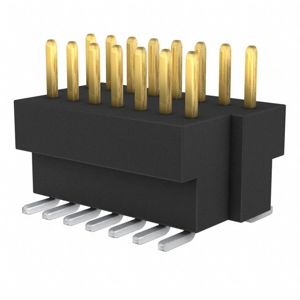

Samtec Inc.
BKT-115-04-F-V

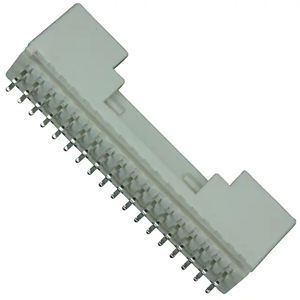

JST Sales America Inc.
B36B-PUDSS-1(LF)(SN)

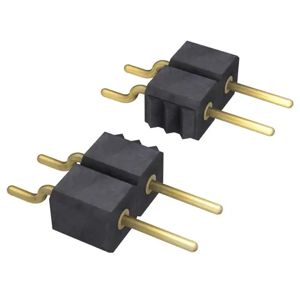

Preci-Dip
800-10-027-40-001101
TE Connectivity AMP Connectors
3-1445053-1
JST Sales America Inc.
S2B-XH-A-1(LF)(SN)

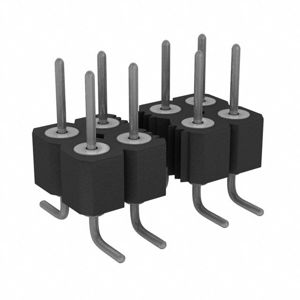

Preci-Dip
