PEC25DBAN

Sullins Connector Solutions

Manufacturer

Sullins Connector Solutions

Description:

CONN HEADER R/A 50POS 2.54MM

Datasheet:

PEC25DBAN Datasheet

$2.88

Available to order

Reference Price (USD)

$2.88000

10+

$2.76000

25+

$2.53000

50+

$2.41500

100+

$2.30000

250+

$2.01252

500+

$1.95500

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

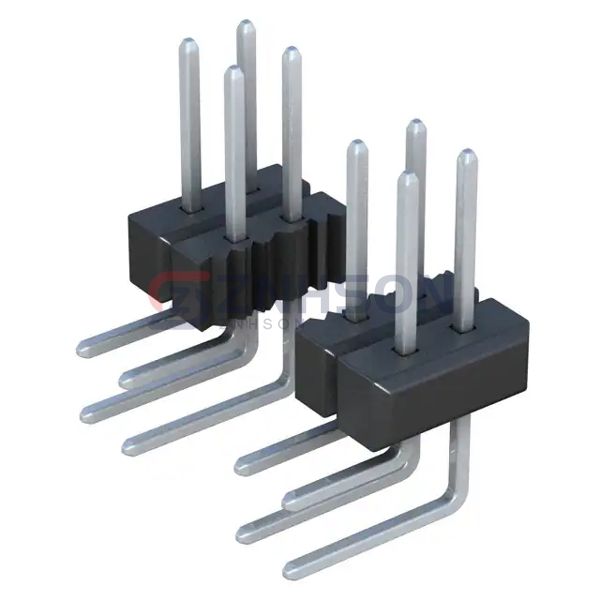

Enhance your electronic assemblies with the PEC25DBAN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC25DBAN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.

Specifications

Product Status: Active
Connector Type: Header, Breakaway
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 50
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.230" (5.84mm)
Contact Length - Post: 0.100" (2.54mm)
Overall Contact Length: -
Insulation Height: 0.240" (6.10mm)
Contact Shape: Square
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 100.0µin (2.54µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT)
Features: -
Operating Temperature: -65°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: -
