PEC25DBCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 50POS 2.54MM
$6.06
Available to order
Reference Price (USD)
1+
$6.06000
10+
$5.82000
25+
$5.33520
50+
$5.09260
100+
$4.85000
250+
$4.24376
500+
$4.12250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PEC25DBCN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC25DBCN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.300" (7.62mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0022232118
Molex
0878910206
Samtec Inc.
FTS-123-03-L-DV-P
Samtec Inc.
FTS-119-02-F-D
Hirose Electric Co Ltd
DF51A-24DP-2DSA
Samtec Inc.
TSM-107-01-TM-DV-012-P-TR
Molex

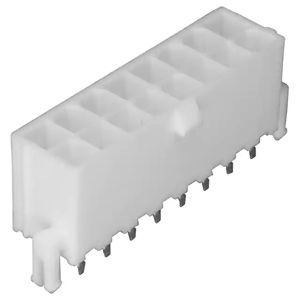

0039289168
Hirose Electric Co Ltd

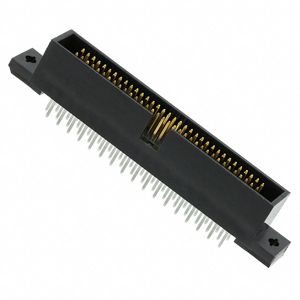

HIF6B-68PA-1.27DSA(71)
HARTING

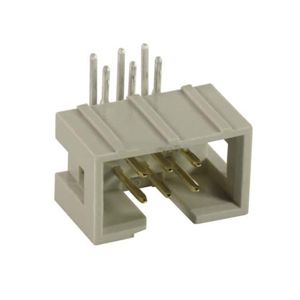

09185506321
