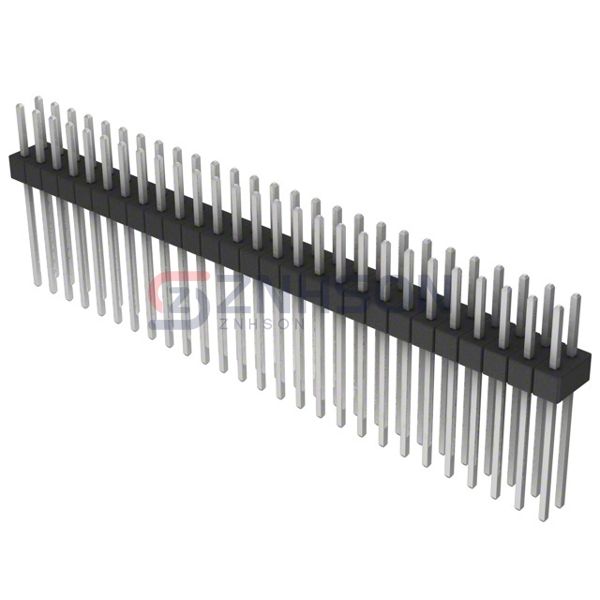

PEC27DAEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 54POS 2.54MM
$5.02
Available to order
Reference Price (USD)
1+
$5.02000
10+
$4.81700
25+
$4.41560
50+
$4.21480
100+
$4.01400
250+
$3.51224
500+
$3.41190
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC27DAEN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 54
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.850" (21.59mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-120-01-LM-DV-P-TR
Molex
0559593030
Samtec Inc.
BKT-121-02-L-V-S-P-TR
Molex
70553-0048
Amphenol ICC (FCI)
69192-120HLF
METZ CONNECT USA Inc.
PM20204HBNN
Samtec Inc.

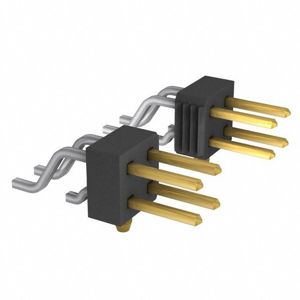

TSM-125-01-L-DH-A-P
