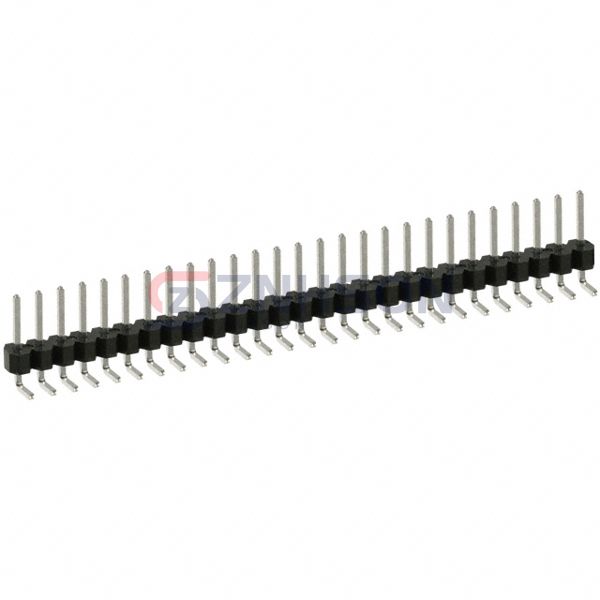

PEC27SBAN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 27POS 2.54MM
$1.87
Available to order
Reference Price (USD)
1+
$1.87000
10+
$1.69800
25+
$1.59400
50+
$1.52460
100+
$1.45530
250+
$1.31672
500+
$1.21276
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC27SBAN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 27
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
