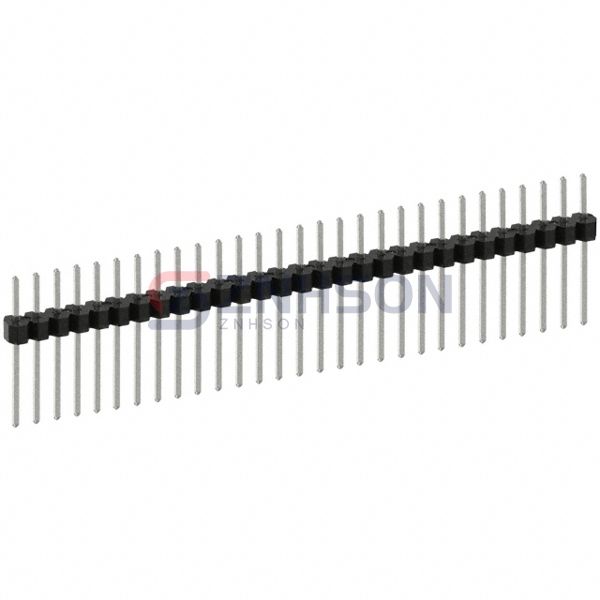

PEC29SADN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 29POS 2.54MM
$2.69
Available to order
Reference Price (USD)
1+
$2.69000
10+
$2.43900
25+
$2.29000
50+
$2.19040
100+
$2.09090
250+
$1.89176
500+
$1.74242
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC29SADN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 29
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-141-08-S-D
Amphenol ICC (FCI)
95293-102-16LF
Sullins Connector Solutions
NRPN332PAEN-RC
Samtec Inc.
FTSH-115-01-SM-DV
Amphenol ICC (FCI)
95278-402A10LF
Amphenol ICC (FCI)
71922-116LF
Amphenol ICC (FCI)
69192-126
HARTING
09185607322
TE Connectivity AMP Connectors

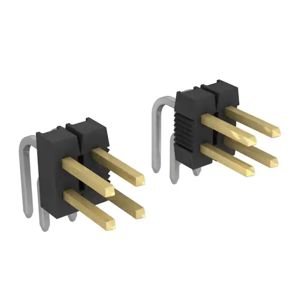

9-102975-0-36
