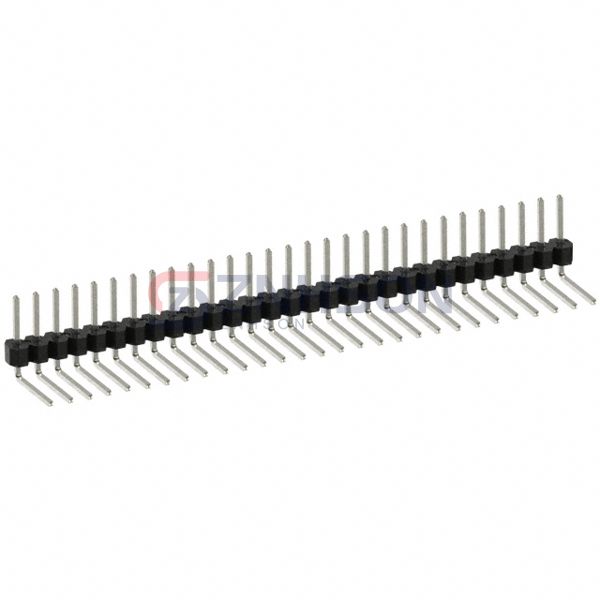

PEC29SBCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 29POS 2.54MM
$3.34
Available to order
Reference Price (USD)
1+
$3.34000
10+
$3.20200
25+
$2.93480
50+
$2.80140
100+
$2.66800
250+
$2.33452
500+
$2.26780
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PEC29SBCN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PEC29SBCN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 29
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.300" (7.62mm)
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTS-105-01-L-DV-A
CNC Tech
3221-16-0300-00
TE Connectivity AMP Connectors
9-103323-0-08
Samtec Inc.

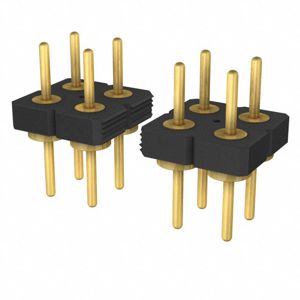

BDL-129-G-E
Amphenol ICC (FCI)

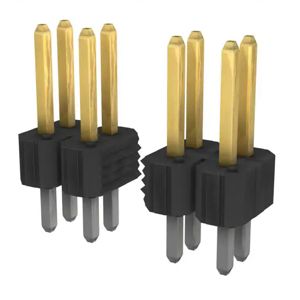

68449-275HLF
ITT Cannon, LLC

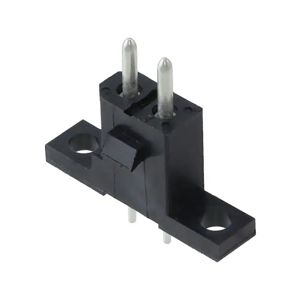

TST02RB01T
Preci-Dip

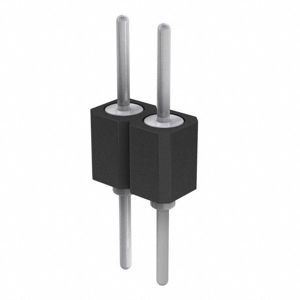

830-80-002-10-001101
Samtec Inc.

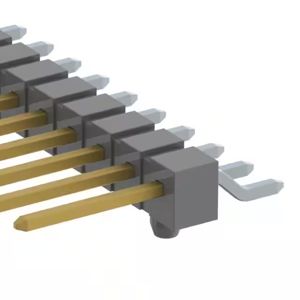

TSM-119-02-L-SH-A
