PEC31SFEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 31POS 2.54MM
$4.19
Available to order
Reference Price (USD)
1+
$4.19000
10+
$4.01800
25+
$3.68280
50+
$3.51540
100+
$3.34800
250+
$2.92952
500+
$2.84580
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PEC31SFEN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC31SFEN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 31
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.938" (23.83mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
800-10-026-10-002101
Mill-Max Manufacturing Corp.
800-10-019-62-001000
Molex
2170630057
Samtec Inc.

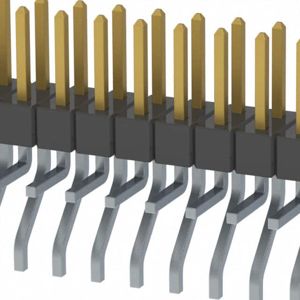

MMT-115-02-L-MT
Molex

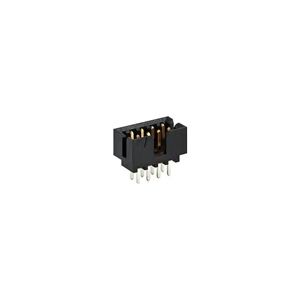

87831-2221
Samtec Inc.

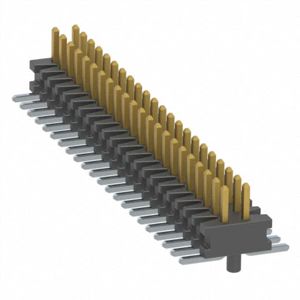

FTMH-122-03-L-DV-A
Molex

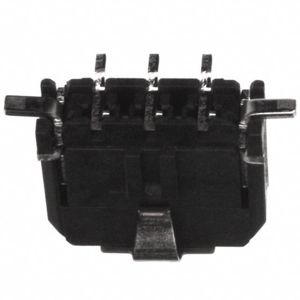

0436500324
Molex
0436501225
Samtec Inc.

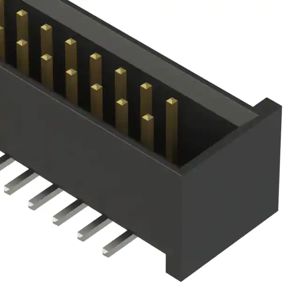

SHF-121-01-L-D-SM
