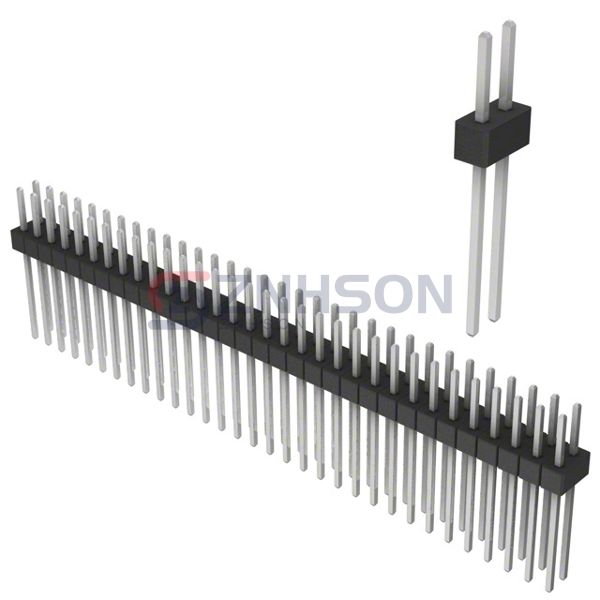

PEC32DAEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 64POS 2.54MM
$5.95
Available to order
Reference Price (USD)
1+
$5.95000
10+
$5.70900
25+
$5.23320
50+
$4.99520
100+
$4.75730
250+
$4.16268
500+
$4.04374
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC32DAEN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.850" (21.59mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
EHF-105-01-L-D-RA
Samtec Inc.
IPBT-104-H1-T-D-GP
Samtec Inc.
BBS-125-G-A
Samtec Inc.
TSM-110-01-T-DV-P
Samtec Inc.
TSW-104-08-L-S-RA
Samtec Inc.
FTS-110-02-F-DV-A
CWB Electronics Inc.
PH-6AWJ UL (WT)
Samtec Inc.
FTSH-125-04-S-DV
Sullins Connector Solutions

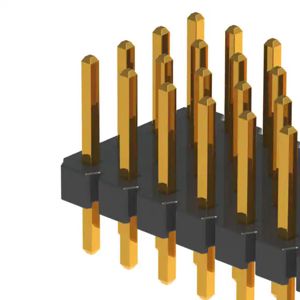

NRPN094RCCN-RC
