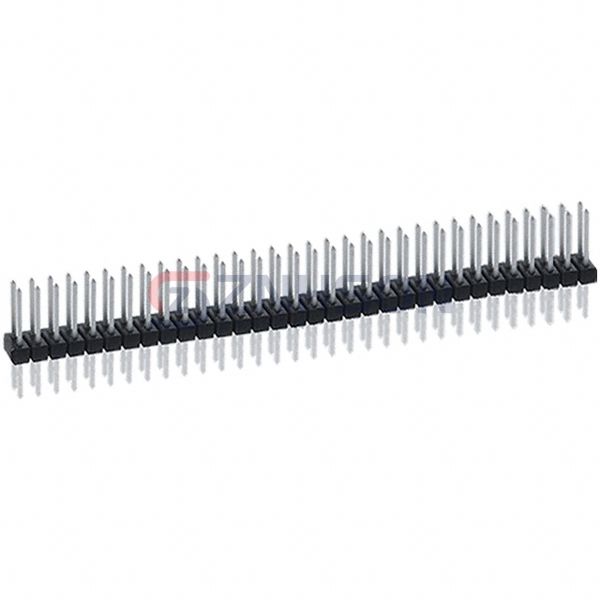

PEC32DFBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 64POS 2.54MM
$4.72
Available to order
Reference Price (USD)
1+
$4.72000
10+
$4.53100
25+
$4.15360
50+
$3.96480
100+
$3.77600
250+
$3.30400
500+
$3.20960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC32DFBN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.220" (5.58mm)
- Overall Contact Length: 0.638" (16.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
185226-1

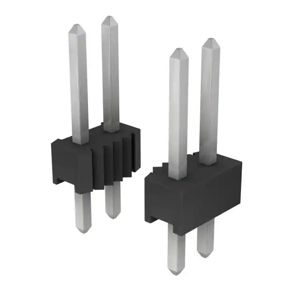

TE Connectivity AMP Connectors
4-103777-0-27
Omron Electronics Inc-EMC Div
XG8W-3431

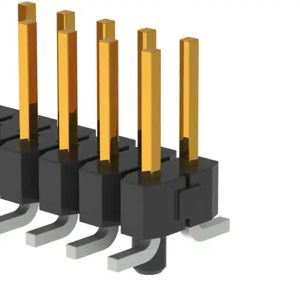

Samtec Inc.
TSM-120-01-L-DV-A-P-TR

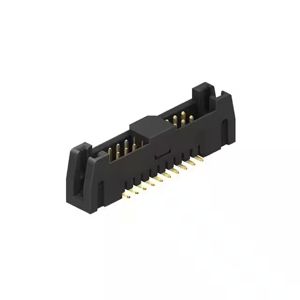

CNC Tech
3110-20-003-11-00-TR

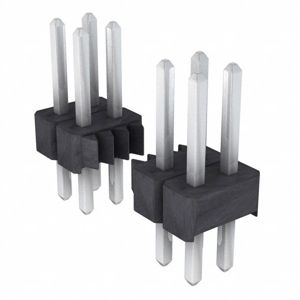

Preci-Dip
892-80-066-10-001101

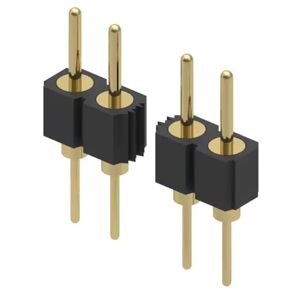

Mill-Max Manufacturing Corp.
