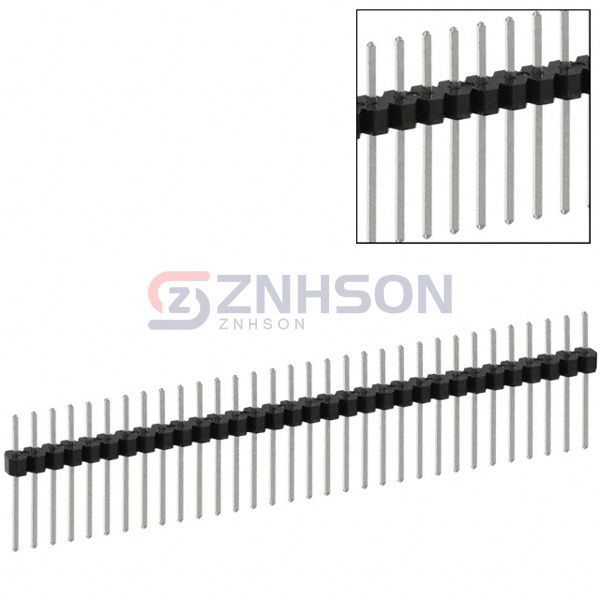

PEC32SAEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 32POS 2.54MM
$2.99
Available to order
Reference Price (USD)
1+
$2.99000
10+
$2.86700
25+
$2.62840
50+
$2.50880
100+
$2.38930
250+
$2.09068
500+
$2.03094
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC32SAEN from Sullins Connector Solutions is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the PEC32SAEN offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Sullins Connector Solutions for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 32
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.850" (21.59mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
