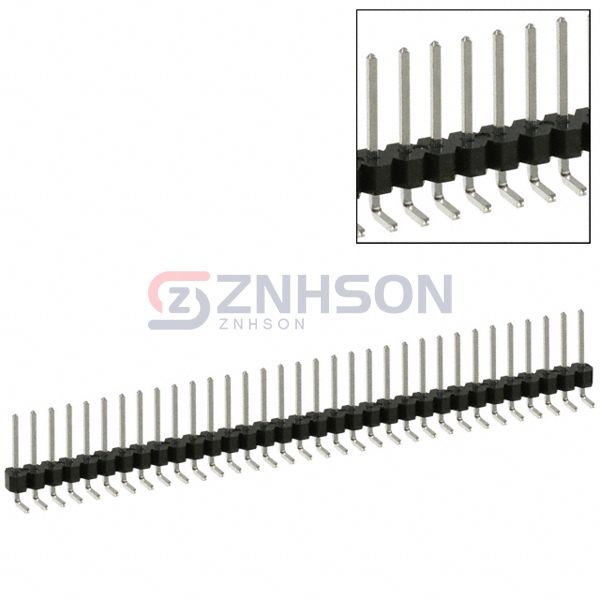

PEC33SGAN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 33POS 2.54MM
$2.70
Available to order
Reference Price (USD)
1+
$2.70000
10+
$2.58700
25+
$2.37160
50+
$2.26380
100+
$2.15600
250+
$1.88652
500+
$1.83260
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PEC33SGAN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PEC33SGAN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 33
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.100" (2.54mm)
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
HTSW-122-08-T-D-RA
Molex
0430451609
Samtec Inc.
BBS-109-G-A
TE Connectivity AMP Connectors

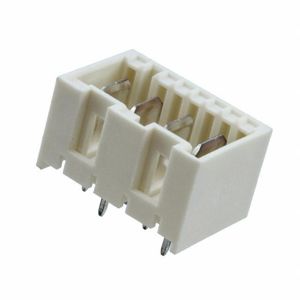

1-1971846-4
Preci-Dip

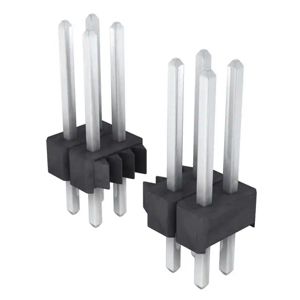

892-80-022-10-003101
Amphenol ICC (FCI)

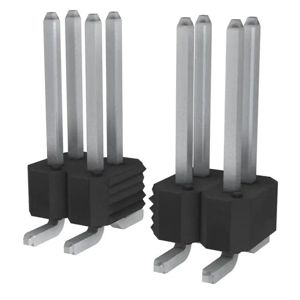

95278-402B38LF
TE Connectivity AMP Connectors

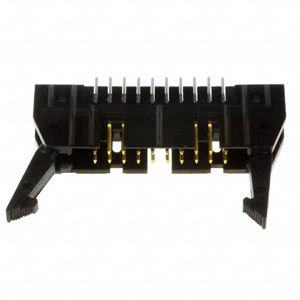

5102321-4
Hirose Electric Co Ltd

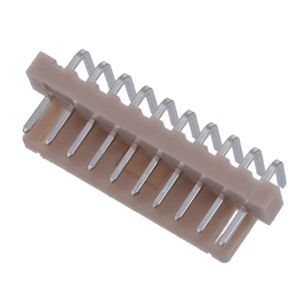

DF1-10P-2.5DS(05)
TE Connectivity AMP Connectors

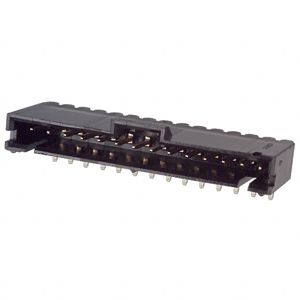

1-103906-3
