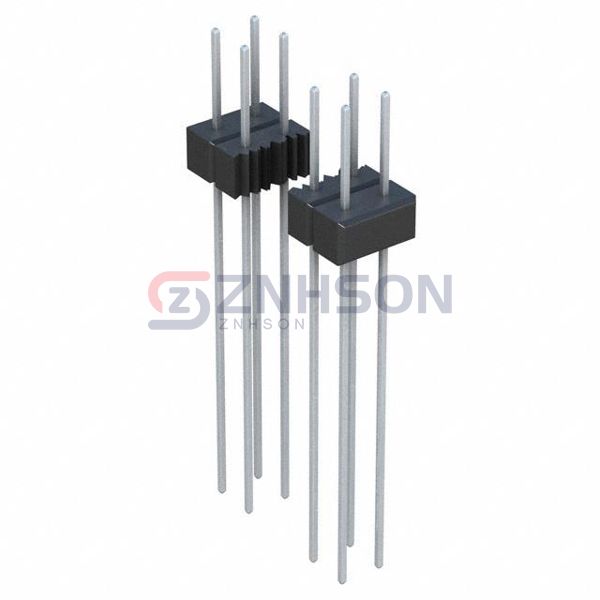

PEC35DAHN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 70POS 2.54MM
$8.61
Available to order
Reference Price (USD)
1+
$8.61000
10+
$8.23900
25+
$7.49000
50+
$7.11560
100+
$6.92830
250+
$6.17924
500+
$5.80476
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PEC35DAHN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC35DAHN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 70
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
22-28-4157
Samtec Inc.
TFM-150-32-L-D-A-P
Samtec Inc.
ZSS-125-05-G-D-875
JST Sales America Inc.
BM09B-PASS-TFT(LF)(SN)
Preci-Dip
802-80-034-10-002101

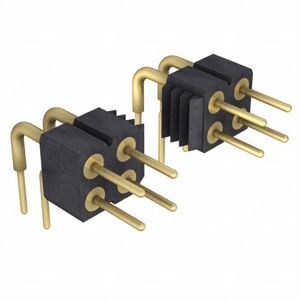

Preci-Dip
832-10-062-20-001101

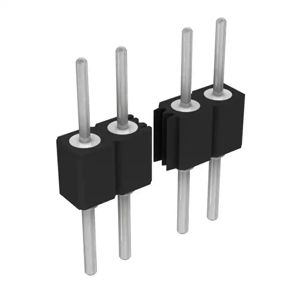

Preci-Dip
800-80-059-10-001101

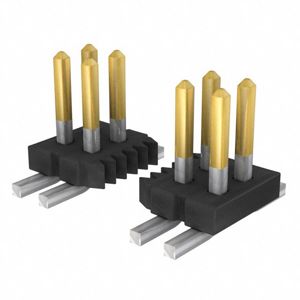

Samtec Inc.
FTS-121-01-S-DV-P

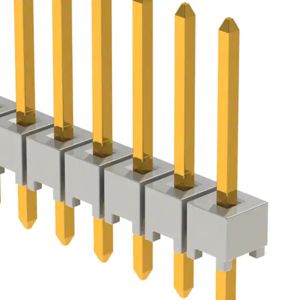

Samtec Inc.
