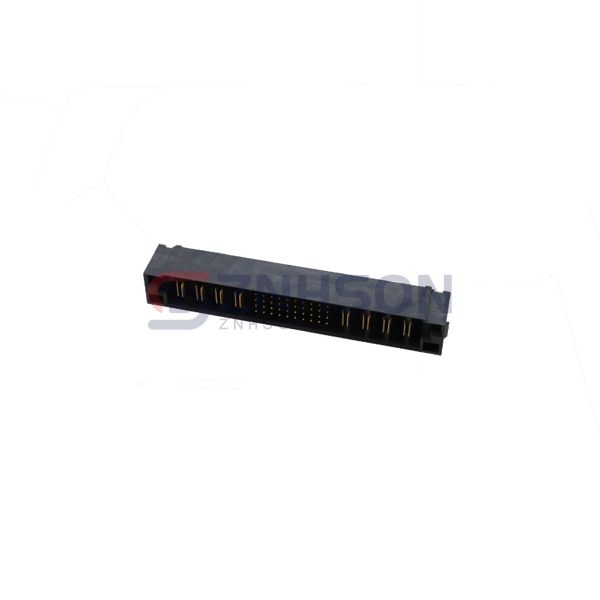

PETC-04-40-04-01-L-VT-L
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 48POS
$23.80
Available to order
Reference Price (USD)
1+
$14.03000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PETC-04-40-04-01-L-VT-L from Samtec Inc. is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the PETC-04-40-04-01-L-VT-L offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Samtec Inc. for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade; Male Pin
- Pitch - Mating: -
- Number of Positions: 48 (40 + 8 Power)
- Number of Rows: 4
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.093" (2.35mm)
- Overall Contact Length: -
- Insulation Height: 0.575" (14.60mm)
- Contact Shape: -
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
