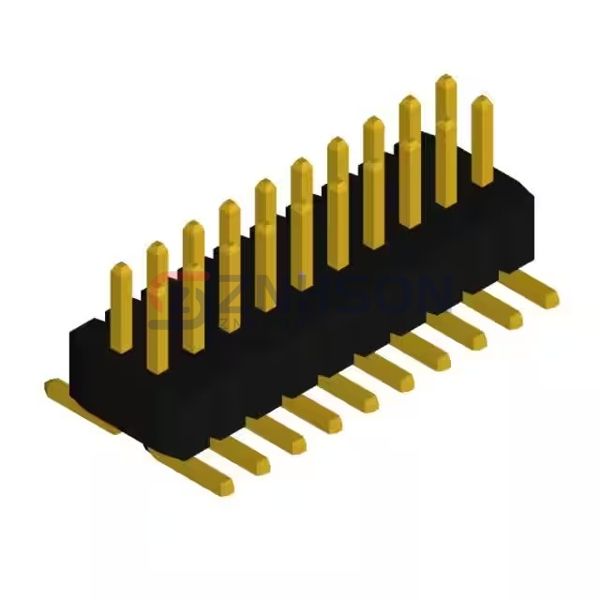

PHBD-SS020G1BBWLE-B025

SUPERIOR TECH

Manufacturer

SUPERIOR TECH

Description:

MALE HEADER VERTICAL 20POS SMD G

Datasheet:

PHBD-SS020G1BBWLE-B025 Datasheet

$1.00

Available to order

Reference Price (USD)

$1.00000

500+

$0.99

1000+

$0.98

1500+

$0.97

2000+

$0.96

2500+

$0.95

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the PHBD-SS020G1BBWLE-B025 rectangular connector header from SUPERIOR TECH, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PHBD-SS020G1BBWLE-B025 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. SUPERIOR TECH guarantees connectors that enhance your product's reliability and efficiency.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.039" (1.00mm)
Number of Positions: 20
Number of Rows: 2
Row Spacing - Mating: 0.039" (1.00mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Surface Mount
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.079" (2.00mm)
Contact Length - Post: 0.079" (2.00mm)
Overall Contact Length: 0.081" (2.05mm)
Insulation Height: 0.059" (1.50mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: Flash
Contact Finish - Post: Gold
Contact Material: Brass
Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
Features: -
Operating Temperature: -40°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 0.75A
Voltage Rating: 500VAC
