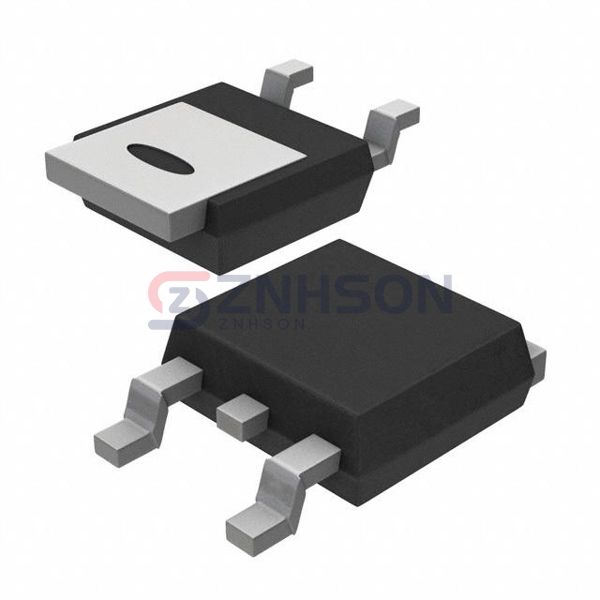

PHD77NQ03T,118
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 25V 75A DPAK
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PHD77NQ03T,118 from NXP USA Inc. redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the PHD77NQ03T,118 offers the precision and reliability you need. Trust NXP USA Inc. to power your next breakthrough innovation.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 9.5mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 3.2V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 17.1 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 860 pF @ 12 V
- FET Feature: -
- Power Dissipation (Max): 107W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
