PHDD-SS004G1ABOGE-B005
SUPERIOR TECH
SUPERIOR TECH
MALE HEADER VERTICAL SMD 4POS G/
$0.30
Available to order
Reference Price (USD)
1+
$0.30000
500+
$0.297
1000+
$0.294
1500+
$0.291
2000+
$0.288
2500+
$0.285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

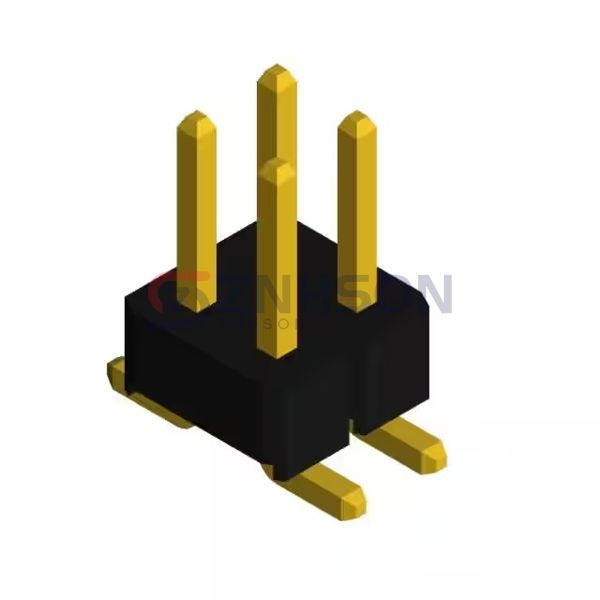

The PHDD-SS004G1ABOGE-B005 male pin header by SUPERIOR TECH offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose SUPERIOR TECH for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.157" (4.00mm)
- Overall Contact Length: 0.083" (2.10mm)
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Plastic, Halogen Free
- Features: Pick and Place
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: -
