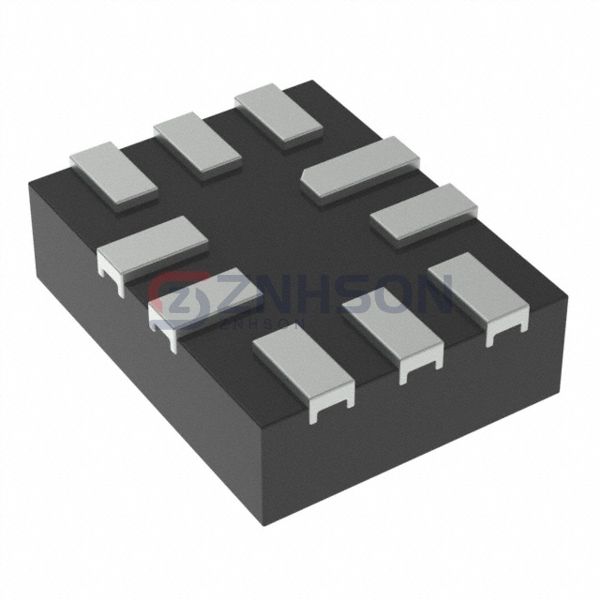

PI3A2268ZMEX
Diodes Incorporated
Diodes Incorporated
IC SWITCH DUAL SPDT 135QFN
$0.00
Available to order
Reference Price (USD)
3,000+
$0.40000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PI3A2268ZMEX from Diodes Incorporated is a high-performance Analog Switch/Multiplexer/Demultiplexer IC designed for precision signal routing applications. As part of our Interface - Analog Switches, Multiplexers, Demultiplexers category, this integrated circuit offers ultra-low on-resistance and minimal charge injection, ensuring signal integrity in demanding environments. These ICs feature wide bandwidth, low power consumption, and excellent channel-to-channel isolation. Typical applications include audio/video signal routing, automated test equipment, data acquisition systems, and communication infrastructure. The PI3A2268ZMEX is particularly suitable for medical imaging devices, industrial automation controls, and aerospace instrumentation where reliable signal switching is critical.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 750mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.2V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 13ns, 12ns
- -3db Bandwidth: 84MHz
- Charge Injection: 50pC
- Channel Capacitance (CS(off), CD(off)): 20pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -110dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UQFN (1.4x1.8)
