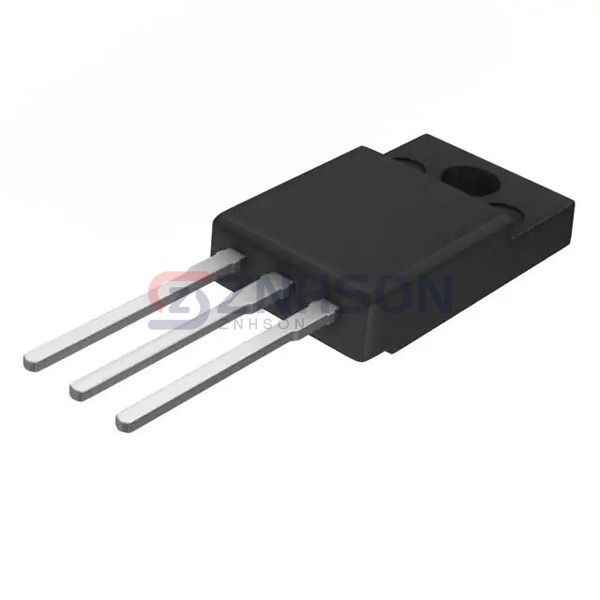

PJF3NA80_T0_00001
Panjit International Inc.
Panjit International Inc.
800V N-CHANNEL MOSFET
$1.24
Available to order
Reference Price (USD)
1+
$1.24000
500+
$1.2276
1000+
$1.2152
1500+
$1.2028
2000+
$1.1904
2500+
$1.178
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJF3NA80_T0_00001 single MOSFET from Panjit International Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PJF3NA80_T0_00001 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4.8Ohm @ 1.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 11 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 406 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 39W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: ITO-220AB
- Package / Case: TO-220-3 Full Pack
