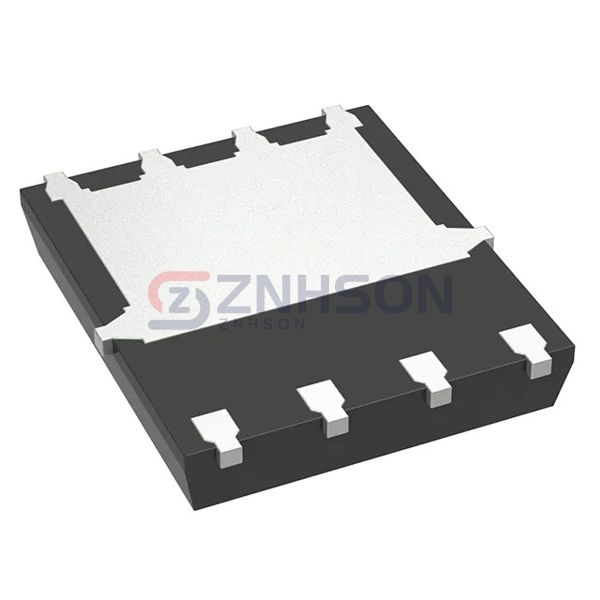

PJQ5420_R2_00001
Panjit International Inc.
Panjit International Inc.
30V N-CHANNEL ENHANCEMENT MODE M
$0.59
Available to order
Reference Price (USD)
1+
$0.59000
500+
$0.5841
1000+
$0.5782
1500+
$0.5723
2000+
$0.5664
2500+
$0.5605
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJQ5420_R2_00001 single MOSFET from Panjit International Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PJQ5420_R2_00001 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 10.5A (Ta), 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 9mOhm @ 16A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 7.1 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 763 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta), 54W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN5060-8
- Package / Case: 8-PowerVDFN
Related Products
Diodes Incorporated
ZXM64P03XTA
Renesas Electronics America Inc
HAT2025R-EL-E
Vishay Siliconix
SIHH105N60EF-T1GE3
Vishay Siliconix
IRF830PBF-BE3
onsemi
NVMFS5C645NLAFT3G
Rectron USA
RM8N650TI
Infineon Technologies
IPW50R250CPFKSA1
Rohm Semiconductor

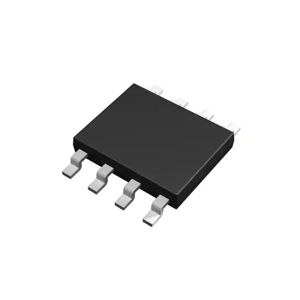

RS3L140GNGZETB
