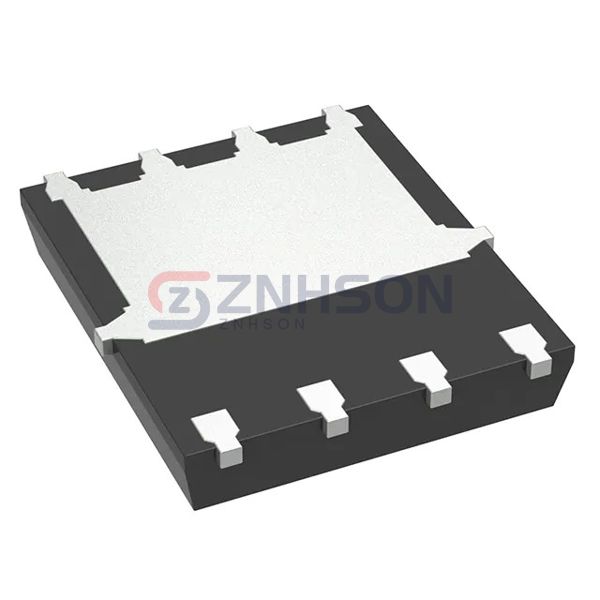

PJQ5446_R2_00001
Panjit International Inc.
Panjit International Inc.
40V N-CHANNEL ENHANCEMENT MODE M
$0.63
Available to order
Reference Price (USD)
1+
$0.63000
500+
$0.6237
1000+
$0.6174
1500+
$0.6111
2000+
$0.6048
2500+
$0.5985
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the PJQ5446_R2_00001 single MOSFET from Panjit International Inc.. This Discrete Semiconductor Product excels in power conversion and management, featuring ultra-low RDS(on) and high-speed switching. Its compact design and durability make it suitable for consumer electronics, telecommunications, and computing devices. Trust Panjit International Inc.'s PJQ5446_R2_00001 for unmatched quality and performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 12A (Ta), 70A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 9.5mOhm @ 12A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 22 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1258 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta), 70W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN5060-8
- Package / Case: 8-PowerVDFN
