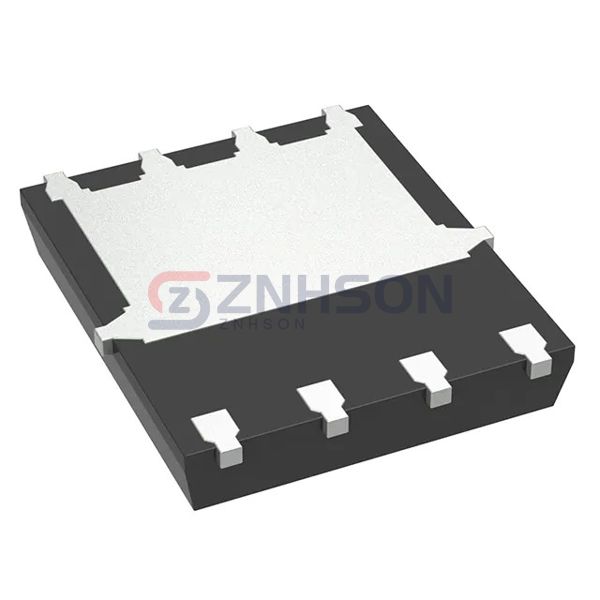

PJQ5474A_R2_00001
Panjit International Inc.
Panjit International Inc.
100V N-CHANNEL ENHANCEMENT MODE
$0.87
Available to order
Reference Price (USD)
1+
$0.87000
500+
$0.8613
1000+
$0.8526
1500+
$0.8439
2000+
$0.8352
2500+
$0.8265
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the PJQ5474A_R2_00001 by Panjit International Inc., a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the PJQ5474A_R2_00001 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 18A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 50mOhm @ 18A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 61 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3555 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 52W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN5060-8
- Package / Case: 8-PowerVDFN
