PL20-2
Cinch Connectivity Solutions Trompeter
Cinch Connectivity Solutions Trompeter

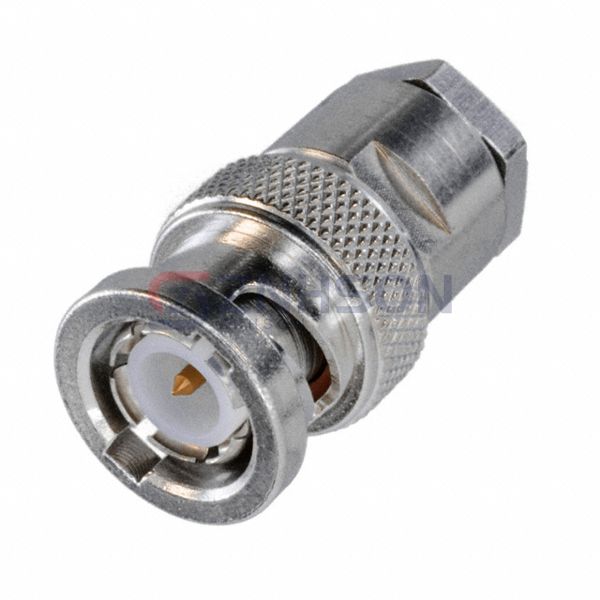

CONN BNC PLUG STR 50 OHM SOLDER
$34.31
Available to order
Reference Price (USD)
1+
$29.61000
10+
$26.73300
25+
$26.01320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PL20-2 from Cinch Connectivity Solutions Trompeter represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The PL20-2 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Wrench Clamp
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: RG-59
- Fastening Type: Bayonet Lock
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: -
