PM20C03HBDN
METZ CONNECT USA Inc.
METZ CONNECT USA Inc.
PIN HEADER, SMT, DUAL ROW, 2.00
$0.55
Available to order
Reference Price (USD)
1+
$0.55000
500+
$0.5445
1000+
$0.539
1500+
$0.5335
2000+
$0.528
2500+
$0.5225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

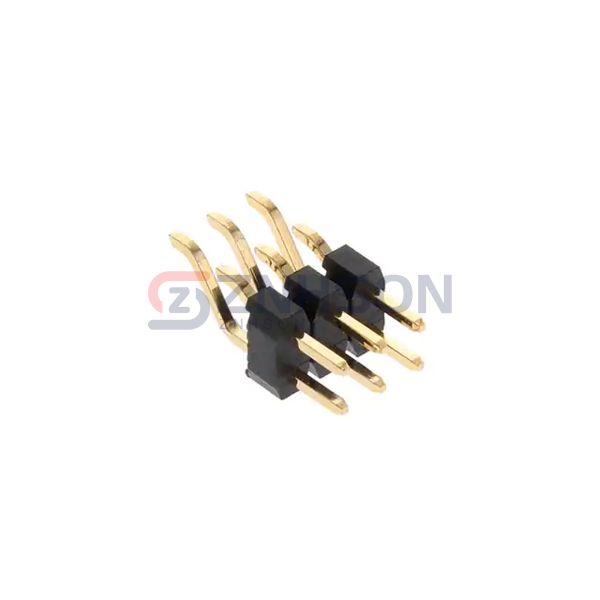

Optimize your interconnections with the PM20C03HBDN rectangular connector header from METZ CONNECT USA Inc.. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PM20C03HBDN is perfect for automotive, industrial, and consumer electronics. METZ CONNECT USA Inc. ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Copper Zinc
- Insulation Material: Polyethylene
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
