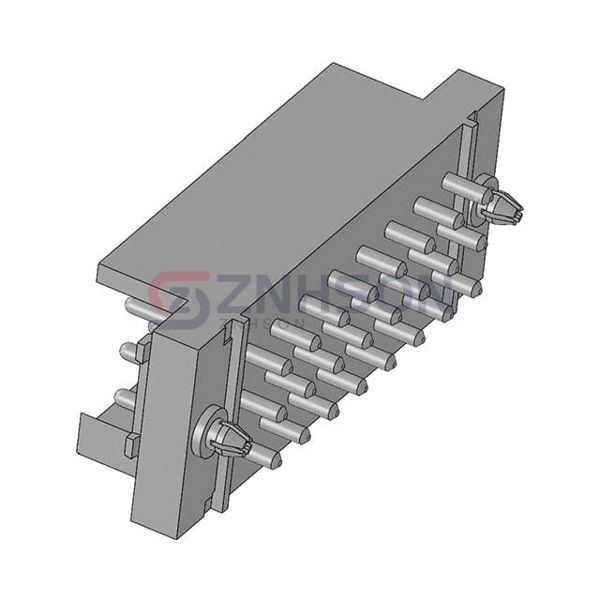

PM324MBAOSP
Anderson Power Products, Inc.
Anderson Power Products, Inc.
POWERMOD 3X24 PIN STRAIGHT PCB
$20.74
Available to order
Reference Price (USD)
1+
$20.74000
500+
$20.5326
1000+
$20.3252
1500+
$20.1178
2000+
$19.9104
2500+
$19.703
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PM324MBAOSP by Anderson Power Products, Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PM324MBAOSP supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Anderson Power Products, Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin, Power
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 24
- Number of Rows: 3
- Row Spacing - Mating: 0.197" (5.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: -
- Contact Length - Mating: -
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 0.600" (15.24mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin Alloy
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS)
- Features: Board Lock
- Operating Temperature: -55°C ~ 180°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 30A
- Voltage Rating: 600V
Related Products
Samtec Inc.
TSM-117-01-S-SH-A
Samtec Inc.
HTSW-125-14-S-S-LL
Preci-Dip
890-70-016-10-002101
Samtec Inc.
TSM-120-01-L-SH
Hirose Electric Co Ltd
HIF6-20PA-1.27DSA(71)
Samtec Inc.
TSW-126-07-T-D
Samtec Inc.
TSM-116-04-T-SH-A
Samtec Inc.

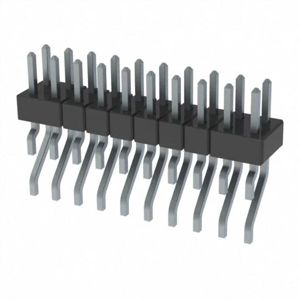

MMT-110-01-TM-DH
Amphenol ICC (FCI)

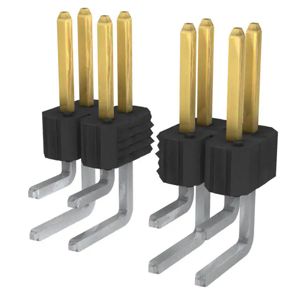

68020-272H
