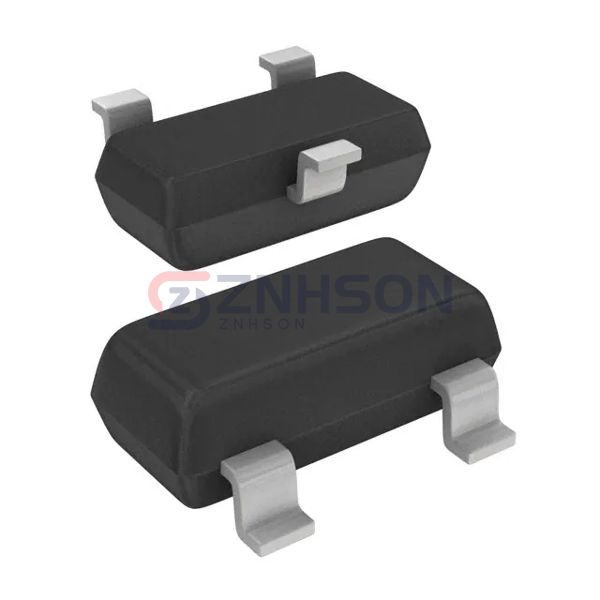

PMF290XN,115
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 20V 1A SOT323-3
$0.08
Available to order
Reference Price (USD)
1+
$0.08000
500+
$0.0792
1000+
$0.0784
1500+
$0.0776
2000+
$0.0768
2500+
$0.076
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PMF290XN,115 by NXP USA Inc. is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the PMF290XN,115 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 1A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 350mOhm @ 200mA, 4.5V
- Vgs(th) (Max) @ Id: 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.72 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 34 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 560mW (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SC-70
- Package / Case: SC-70, SOT-323
Related Products
Infineon Technologies
SPP02N60S5
Infineon Technologies
BSZ110N06NS3GATMA1
Alpha & Omega Semiconductor Inc.
AOTF14N50
Microchip Technology
APT20M20JFLL
Toshiba Semiconductor and Storage
SSM6K504NU,LF
STMicroelectronics
STP40NF12
STMicroelectronics
STWA48N60M6
Infineon Technologies
IPB120N06S4H1ATMA2
IXYS

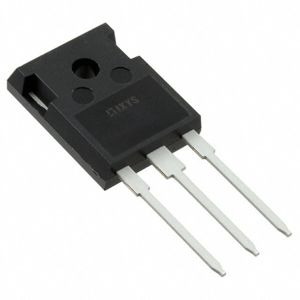

IXFH12N100P

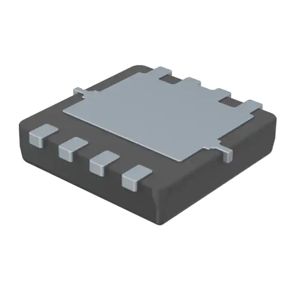

Panjit International Inc.
