PMPB10XNEZ
Nexperia USA Inc.
Nexperia USA Inc.

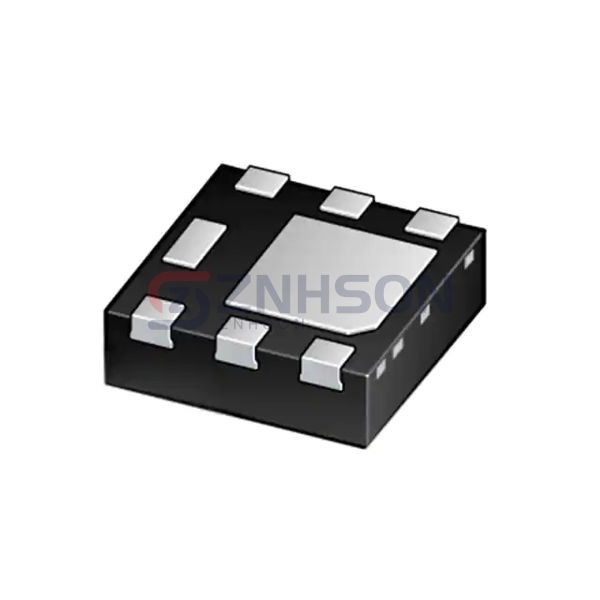

MOSFET N-CH 20V 9A DFN2020MD-6
$0.52
Available to order
Reference Price (USD)
3,000+
$0.21212
6,000+
$0.20018
15,000+
$0.18825
30,000+
$0.17989
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PMPB10XNEZ from Nexperia USA Inc. sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Nexperia USA Inc.'s PMPB10XNEZ for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 9A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 14mOhm @ 9A, 4.5V
- Vgs(th) (Max) @ Id: 900mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 34 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 2175 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.7W (Ta), 12.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN2020MD-6
- Package / Case: 6-UDFN Exposed Pad
