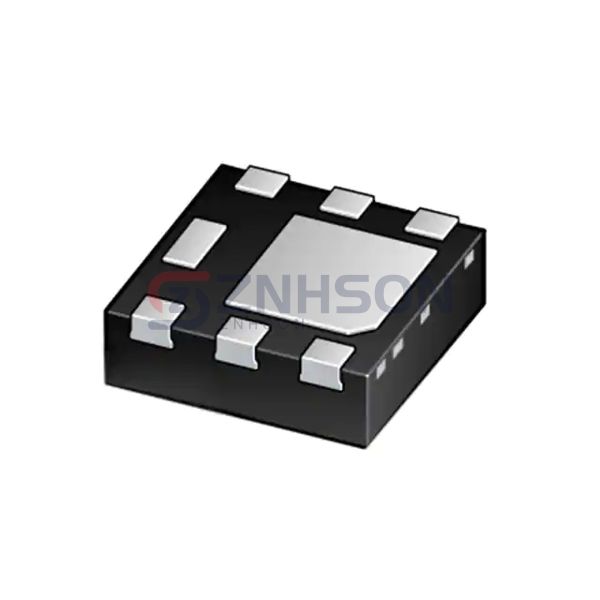

PMPB13UPX
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET P-CH 12V 9.1A DFN2020MD-6
$0.14
Available to order
Reference Price (USD)
1+
$0.14322
500+
$0.1417878
1000+
$0.1403556
1500+
$0.1389234
2000+
$0.1374912
2500+
$0.136059
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PMPB13UPX from Nexperia USA Inc., a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the PMPB13UPX ensures reliable performance in demanding environments. Upgrade your circuit designs with Nexperia USA Inc.'s cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 9.1A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 16mOhm @ 9.1A, 4.5V
- Vgs(th) (Max) @ Id: 900mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 39 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 2230 pF @ 6 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta), 12.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN2020MD-6
- Package / Case: 6-UDFN Exposed Pad
