PR20206HBNN
METZ CONNECT USA Inc.
METZ CONNECT USA Inc.

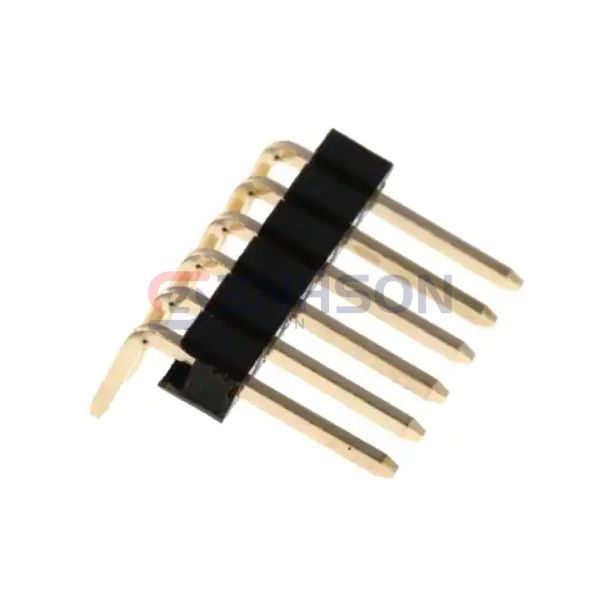

PIN HEADER, THR, SINGLE ROW, .10
$0.25
Available to order
Reference Price (USD)
1+
$0.25000
500+
$0.2475
1000+
$0.245
1500+
$0.2425
2000+
$0.24
2500+
$0.2375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PR20206HBNN by METZ CONNECT USA Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. METZ CONNECT USA Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Copper Zinc
- Insulation Material: Polyethylene
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
