PREC012DAAN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 24POS 2.54MM
$0.46
Available to order
Reference Price (USD)
1+
$0.46000
10+
$0.42900
25+
$0.38600
50+
$0.34300
100+
$0.32870
250+
$0.30012
500+
$0.28584
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PREC012DAAN-RC by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.448" (11.39mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
JST Sales America Inc.
B08P-HL-A(LF)(SN)
Amphenol ICC (FCI)
77315-124-21LF
Preci-Dip
852-80-038-30-001101
Preci-Dip
800-10-044-10-002101
3M
929836-08-18
Samtec Inc.
TSM-105-01-T-DV-009
Samtec Inc.
FTSH-108-01-F-DV-A-P-TR

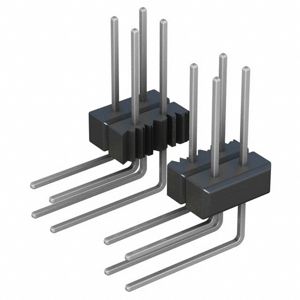

Sullins Connector Solutions
