PRPC020DBAN-M71RC
Sullins Connector Solutions
Sullins Connector Solutions

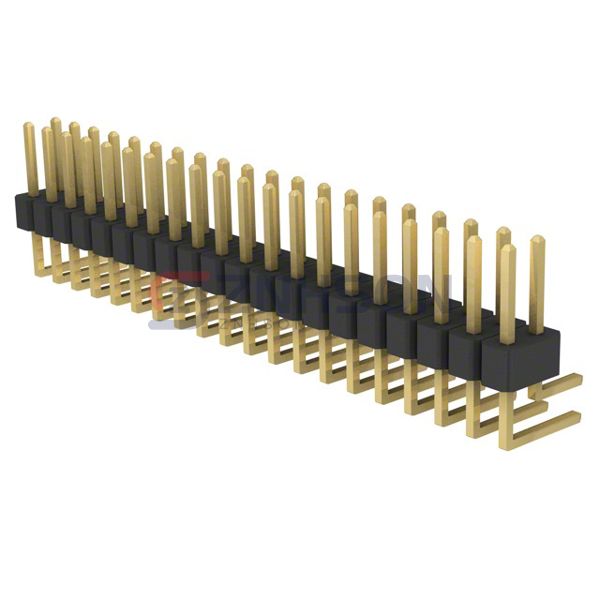

CONN HEADER R/A 40POS 2.54MM
$1.53
Available to order
Reference Price (USD)
1+
$1.53000
10+
$1.39100
25+
$1.30560
50+
$1.24880
100+
$1.19200
250+
$1.07844
500+
$0.99330
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the PRPC020DBAN-M71RC rectangular connector header from Sullins Connector Solutions for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Sullins Connector Solutions is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.197" (5.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
280392-2
Preci-Dip
890-18-010-10-004101
Mill-Max Manufacturing Corp.
850-10-015-40-001000
Preci-Dip
351-80-164-00-003101
Molex
0022284216
Sullins Connector Solutions
PBC04SAFN
TE Connectivity AMP Connectors
104433-8
Samtec Inc.

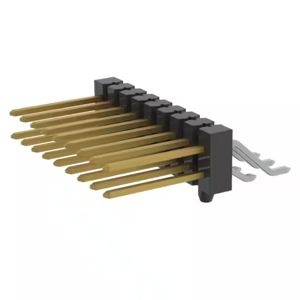

TSM-109-03-L-DH-A-K-TR
Samtec Inc.

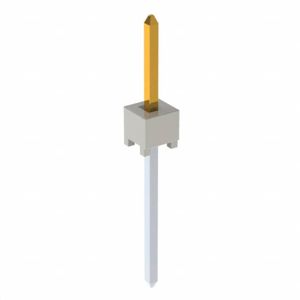

HTSW-101-09-L-S
