PRPC032DABN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 64POS 2.54MM
$1.52
Available to order
Reference Price (USD)
1+
$1.52000
10+
$1.38100
25+
$1.29600
50+
$1.23980
100+
$1.18340
250+
$1.07068
500+
$0.98616
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the PRPC032DABN-RC rectangular connector header by Sullins Connector Solutions. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the PRPC032DABN-RC ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Sullins Connector Solutions for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.230" (5.84mm)
- Overall Contact Length: 0.558" (14.18mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Preci-Dip
830-10-016-40-001101
TE Connectivity AMP Connectors
641215-9
Molex
55917-2613
Samtec Inc.
STMM-113-02-T-D
Molex
55454-1170
TE Connectivity AMP Connectors
1376137-2
Samtec Inc.
IPL1-118-02-L-D-K
Samtec Inc.

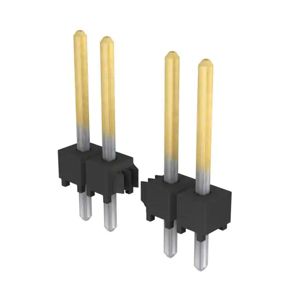

TSW-118-14-S-S

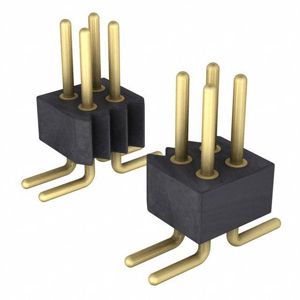

Preci-Dip
