PRPC034DAAN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 68POS 2.54MM
$1.42
Available to order
Reference Price (USD)
1+
$1.42000
10+
$1.28900
25+
$1.21040
50+
$1.15800
100+
$1.10530
250+
$1.00000
500+
$0.92106
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

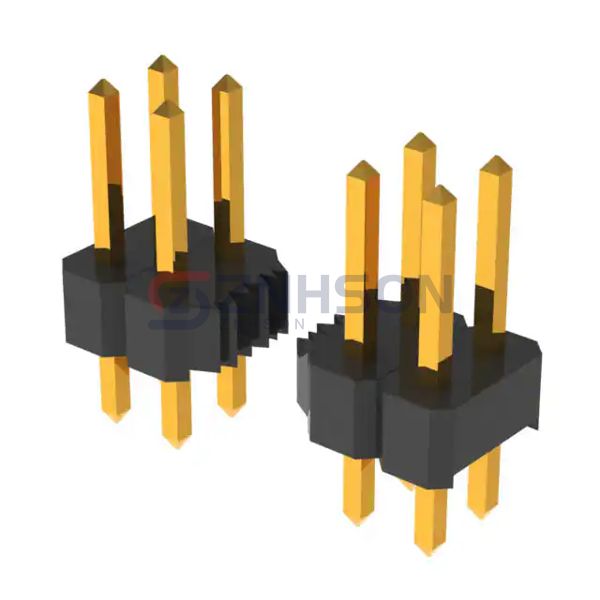

Upgrade your electronic designs with the PRPC034DAAN-RC rectangular connector header by Sullins Connector Solutions. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the PRPC034DAAN-RC ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Sullins Connector Solutions for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 68
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.448" (11.39mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
