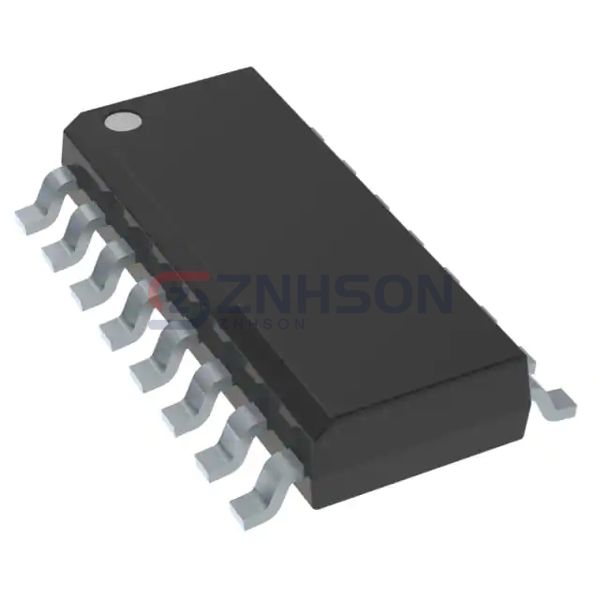

PS509WEX
Diodes Incorporated
Diodes Incorporated
ANALOG SWITCH 17V,SO-16,T&R,2.5K
$2.81
Available to order
Reference Price (USD)
1+
$2.81000
500+
$2.7819
1000+
$2.7538
1500+
$2.7257
2000+
$2.6976
2500+
$2.6695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PS509WEX by Diodes Incorporated represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The PS509WEX is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: 8PST
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 200Ohm
- Channel-to-Channel Matching (ΔRon): 2.4Ohm
- Voltage - Supply, Single (V+): 10V ~ 36V, ±5V ~ 18V
- Voltage - Supply, Dual (V±): 10V ~ 36V, ±5V ~ 18V
- Switch Time (Ton, Toff) (Max): 210ns, 191ns
- -3db Bandwidth: -
- Charge Injection: 2pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 15pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -96dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
