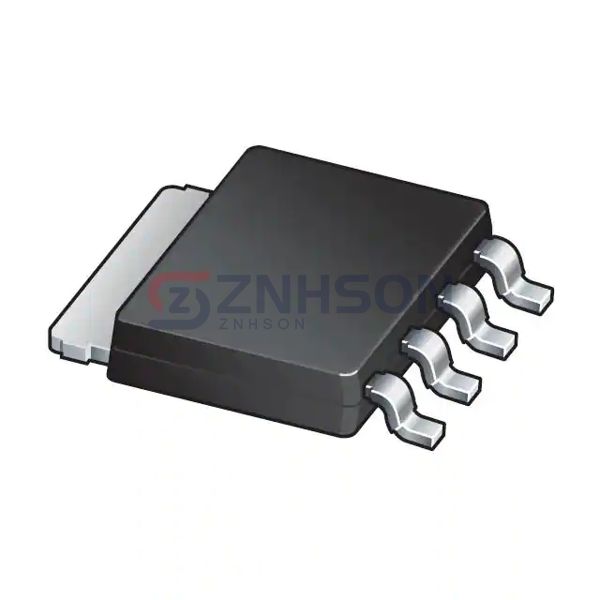

PSMN010-25YLC,115
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 25V 39A LFPAK56
$0.12
Available to order
Reference Price (USD)
1+
$0.12000
500+
$0.1188
1000+
$0.1176
1500+
$0.1164
2000+
$0.1152
2500+
$0.114
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the PSMN010-25YLC,115 by NXP USA Inc., a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the PSMN010-25YLC,115 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 39A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 10.6mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 1.95V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 11 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 678 pF @ 12 V
- FET Feature: -
- Power Dissipation (Max): 30W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
