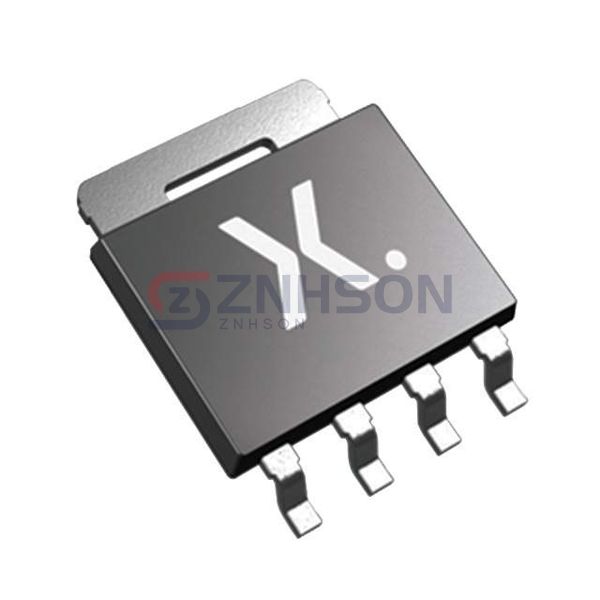

PSMN1R5-25YL,115
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 25V 100A LFPAK56
$1.71
Available to order
Reference Price (USD)
1,500+
$0.68046
3,000+
$0.63510
7,500+
$0.60334
10,500+
$0.58066
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PSMN1R5-25YL,115 from Nexperia USA Inc. redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the PSMN1R5-25YL,115 offers the precision and reliability you need. Trust Nexperia USA Inc. to power your next breakthrough innovation.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.5mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id: 2.15V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 76 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4830 pF @ 12 V
- FET Feature: -
- Power Dissipation (Max): 109W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
