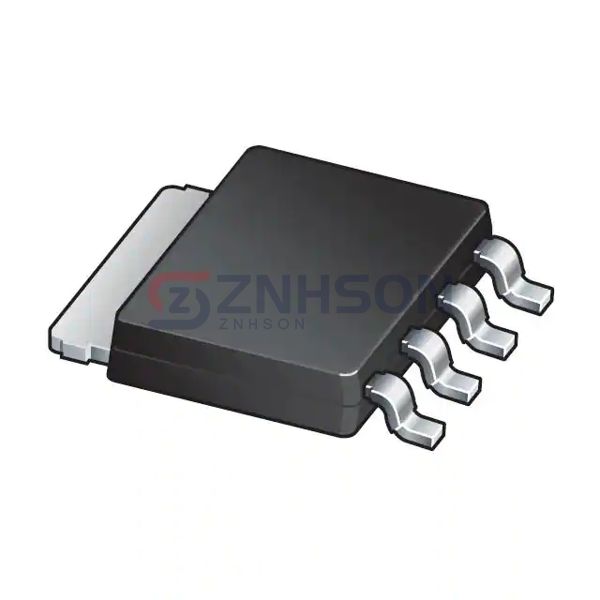

PSMN3R7-30YLC,115
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 30V 100A LFPAK56
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PSMN3R7-30YLC,115 by NXP USA Inc. is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the PSMN3R7-30YLC,115 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.95mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 1.95V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1848 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 79W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
