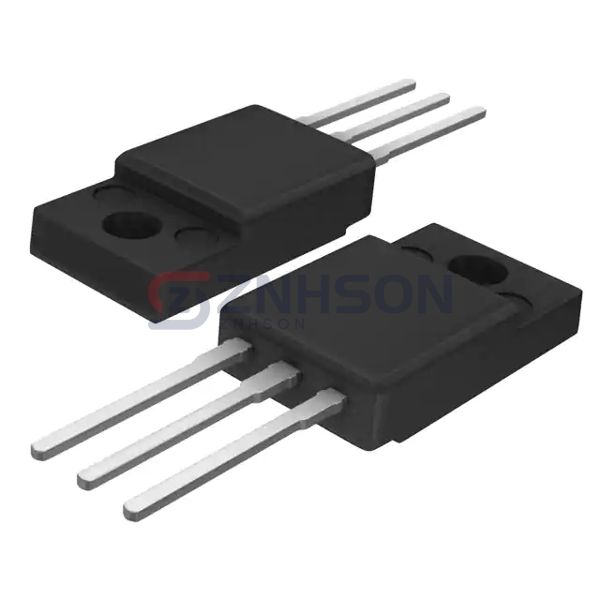

PSMN3R9-60XSQ
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 60V 75A TO220F
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PSMN3R9-60XSQ from NXP USA Inc., a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the PSMN3R9-60XSQ ensures reliable performance in demanding environments. Upgrade your circuit designs with NXP USA Inc.'s cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 103 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5494 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 55W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220F
- Package / Case: TO-220-3 Full Pack, Isolated Tab
Related Products
Vishay Siliconix
SI5406DC-T1-GE3
Infineon Technologies
SPN03N60C3
onsemi
NTD18N06L-001
Infineon Technologies
IRFH5210TR2PBF
Vishay Siliconix
SI4890BDY-T1-E3
STMicroelectronics
STP180N10F3
onsemi
NTD110N02R
Rohm Semiconductor
RRH050P03TB1
Vishay Siliconix

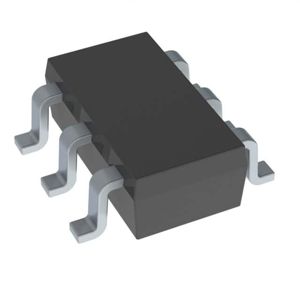

SI3410DV-T1-E3
