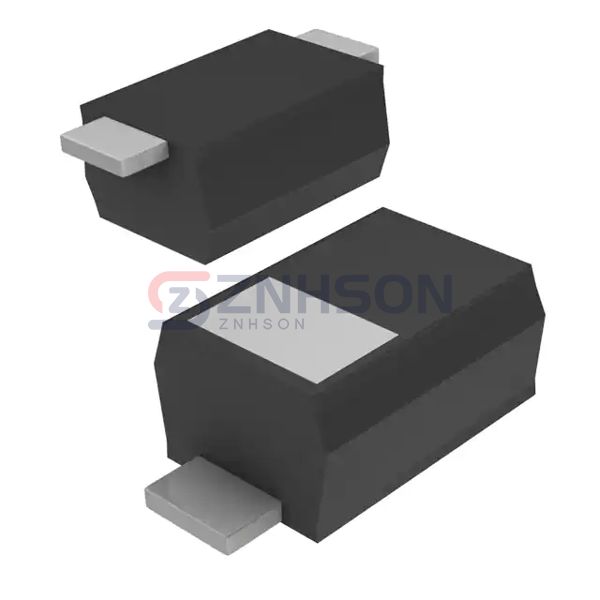

PZ1AL14B_R1_00001
Panjit International Inc.
Panjit International Inc.
SILICON ZENER DIODE
$0.51
Available to order
Reference Price (USD)
1+
$0.51000
500+
$0.5049
1000+
$0.4998
1500+
$0.4947
2000+
$0.4896
2500+
$0.4845
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the PZ1AL14B_R1_00001 Zener diode from Panjit International Inc. is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The PZ1AL14B_R1_00001 is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 14 V
- Tolerance: ±5%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 10 Ohms
- Current - Reverse Leakage @ Vr: 2 µA @ 11 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOD-123F
- Supplier Device Package: SOD-123FL
