PZU5.6B2A,115
Nexperia USA Inc.
Nexperia USA Inc.
DIODE ZENER 5.6V 320MW SOD323
$0.05
Available to order
Reference Price (USD)
3,000+
$0.07115
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PZU5.6B2A,115 from Nexperia USA Inc. is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the PZU5.6B2A,115 is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 5.6 V
- Tolerance: ±2%
- Power - Max: 320 mW
- Impedance (Max) (Zzt): 40 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 2.5 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 100 mA
- Operating Temperature: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
Related Products
Vishay General Semiconductor - Diodes Division
MMSZ4686-G3-18
Vishay General Semiconductor - Diodes Division
SML4741HE3_A/I
onsemi
NZD5V1MUT5G
Microchip Technology
1N4103UR
Microchip Technology
SMAJ4739AE3/TR13
Nexperia USA Inc.
BZV90-C5V6,115
Taiwan Semiconductor Corporation
BZX84C3V6 RFG
Nexperia USA Inc.

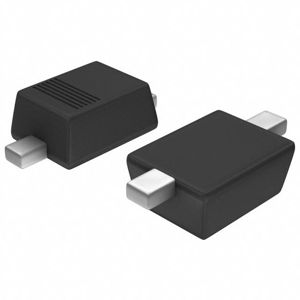

PZU4.7B2,135
