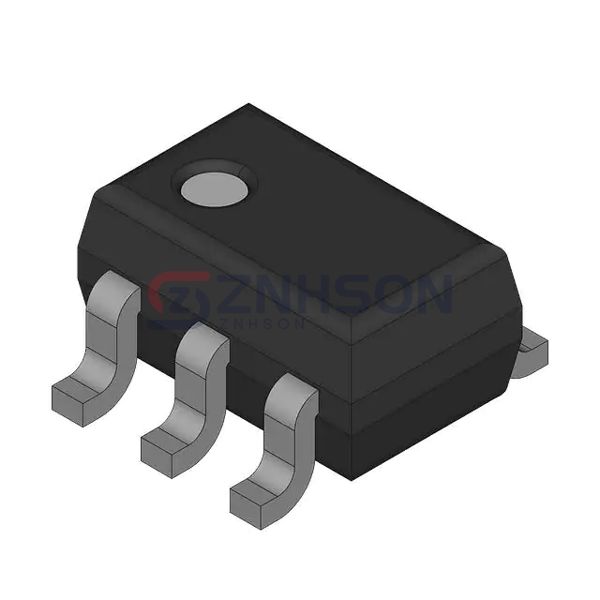

PZU5.6DB2,115
NXP USA Inc.
NXP USA Inc.
DIODE ZENER ARRAY 5.6V
$0.03
Available to order
Reference Price (USD)
1+
$0.03000
500+
$0.0297
1000+
$0.0294
1500+
$0.0291
2000+
$0.0288
2500+
$0.0285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
NXP USA Inc.'s PZU5.6DB2,115 delivers exceptional performance in the Zener diode arrays category of discrete semiconductor products. These arrays offer multiple voltage reference points in a single package, providing designers with compact solutions for complex circuit requirements. The product boasts superior voltage regulation accuracy, low leakage current, and excellent temperature coefficient characteristics. Typical applications include voltage stabilization in wireless charging systems, protection circuits for 5G infrastructure, and reference voltage generation in industrial PLCs. Its robust design ensures reliable operation in challenging environments, making it ideal for automotive, industrial, and telecommunications applications.
Specifications
- Product Status: Active
- Configuration: 2 Independent
- Voltage - Zener (Nom) (Vz): 5.6 V
- Tolerance: ±2%
- Power - Max: 250 mW
- Impedance (Max) (Zzt): -
- Current - Reverse Leakage @ Vr: 10 µA @ 2.5 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -55°C ~ 150°C (TA)
- Mounting Type: -
- Package / Case: -
- Supplier Device Package: -
