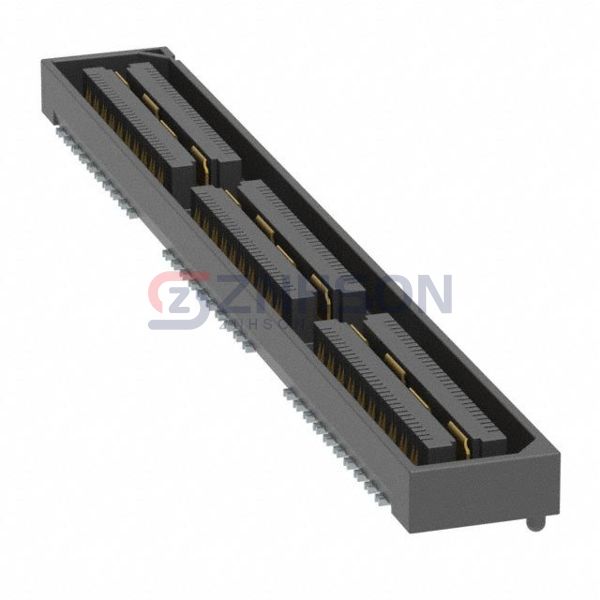

QSH-060-01-C-D-DP-TR
Samtec Inc.

Samtec Inc.
CONN DIFF ARRAY RCPT 120POS SMD
$12.31
Available to order
Reference Price (USD)
200+
$14.42500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the QSH-060-01-C-D-DP-TR rectangular connector by Samtec Inc.. Designed for mezzanine (board-to-board) applications, this connector ensures optimal performance in high-density configurations. Its edge-type design facilitates easy installation and secure mating, making it a preferred choice for engineers. These connectors excel in environments requiring robust and repeatable connections, such as military communications, industrial robotics, and renewable energy systems. Specific use cases include embedded computing modules and automated test equipment. With QSH-060-01-C-D-DP-TR, you get a dependable connector that meets the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Differential Pair Array, Female
- Number of Positions: 120
- Pitch: 0.020" (0.50mm)
- Number of Rows: 2
- Mounting Type: Surface Mount
- Features: Ground Bus (Plane)
- Contact Finish: Gold
- Contact Finish Thickness: 50.0µin (1.27µm)
- Mated Stacking Heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
- Height Above Board: 0.128" (3.25mm)
