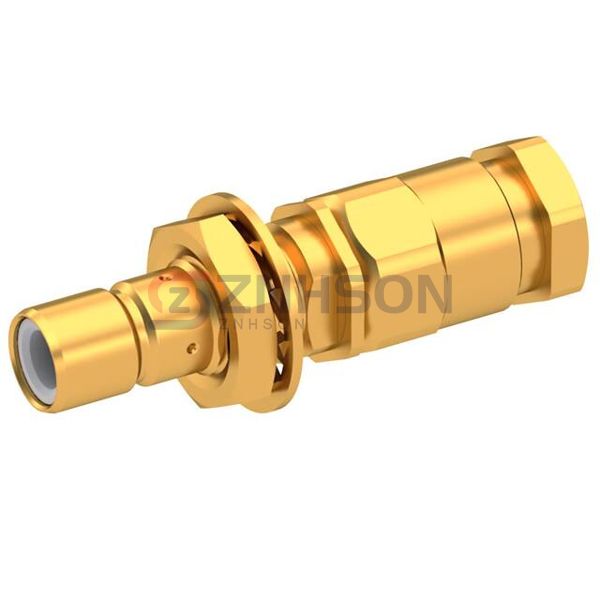

R114305133
Radiall USA, Inc.
Radiall USA, Inc.
SMB / STRAIGHT BULKHEAD JACK CLA
$11.56
Available to order
Reference Price (USD)
1+
$11.56500
500+
$11.44935
1000+
$11.3337
1500+
$11.21805
2000+
$11.1024
2500+
$10.98675
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The R114305133 from Radiall USA, Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The R114305133 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Clamp
- Impedance: 50Ohm
- Mounting Type: Panel Mount
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: RG-179, 187, 188, 316
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
