R222302002
Radiall USA, Inc.
Radiall USA, Inc.

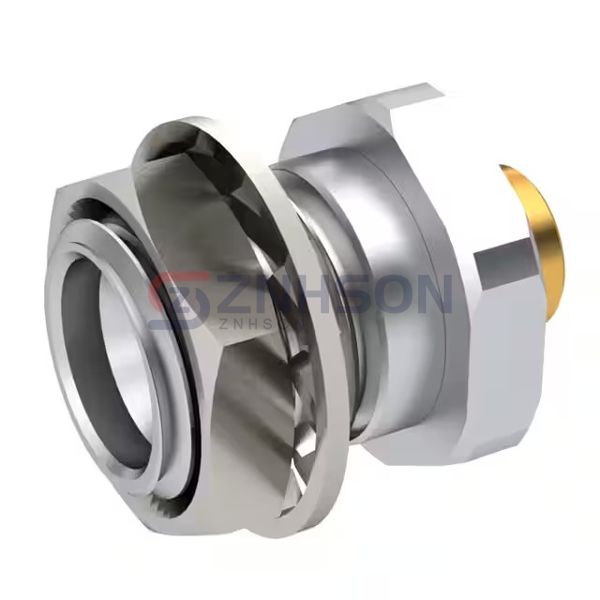

SMP / BULKHEAD STRAIGHT MALE JAC
$35.61
Available to order
Reference Price (USD)
1+
$35.61000
500+
$35.2539
1000+
$34.8978
1500+
$34.5417
2000+
$34.1856
2500+
$33.8295
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The R222302002 from Radiall USA, Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The R222302002 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMP
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: RG-405 (.085" Semi Rigid)
- Fastening Type: Snap-On
- Frequency - Max: 40 GHz
- Number of Ports: 1
- Features: Full Detent
- Housing Color: Gold, Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
