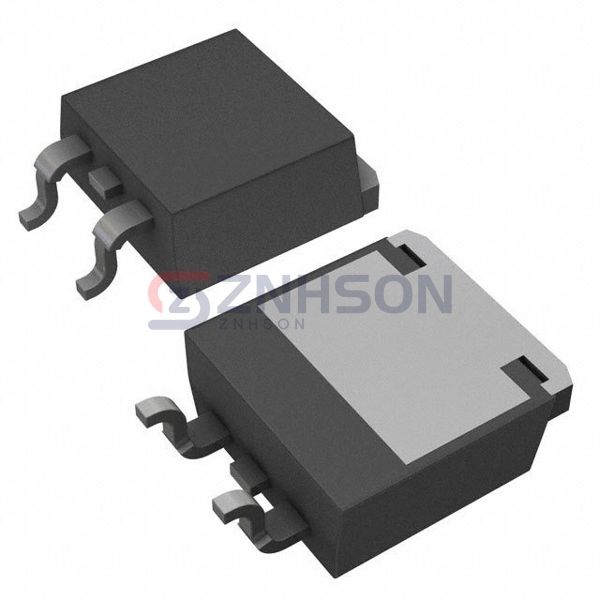

R5009ANJTL
Rohm Semiconductor
Rohm Semiconductor
MOSFET N-CH 500V 9A LPTS
$0.00
Available to order
Reference Price (USD)
1,000+
$1.62400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The R5009ANJTL single MOSFET from Rohm Semiconductor is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the R5009ANJTL is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 500 V
- Current - Continuous Drain (Id) @ 25°C: 9A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 720mOhm @ 4.5A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 21 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 650 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 50W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LPTS
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Related Products
Alpha & Omega Semiconductor Inc.
AO4485_102
onsemi
NDS9407
IXYS
IXFH80N10
NXP USA Inc.
PSMN035-150P
Toshiba Semiconductor and Storage
TK20A25D,S5Q(M
STMicroelectronics
STD55NH2LLT4
Diodes Incorporated
ZVNL120GTC
NXP USA Inc.

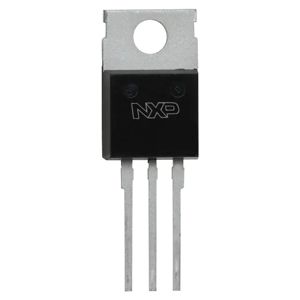

BUK75150-55A,127
